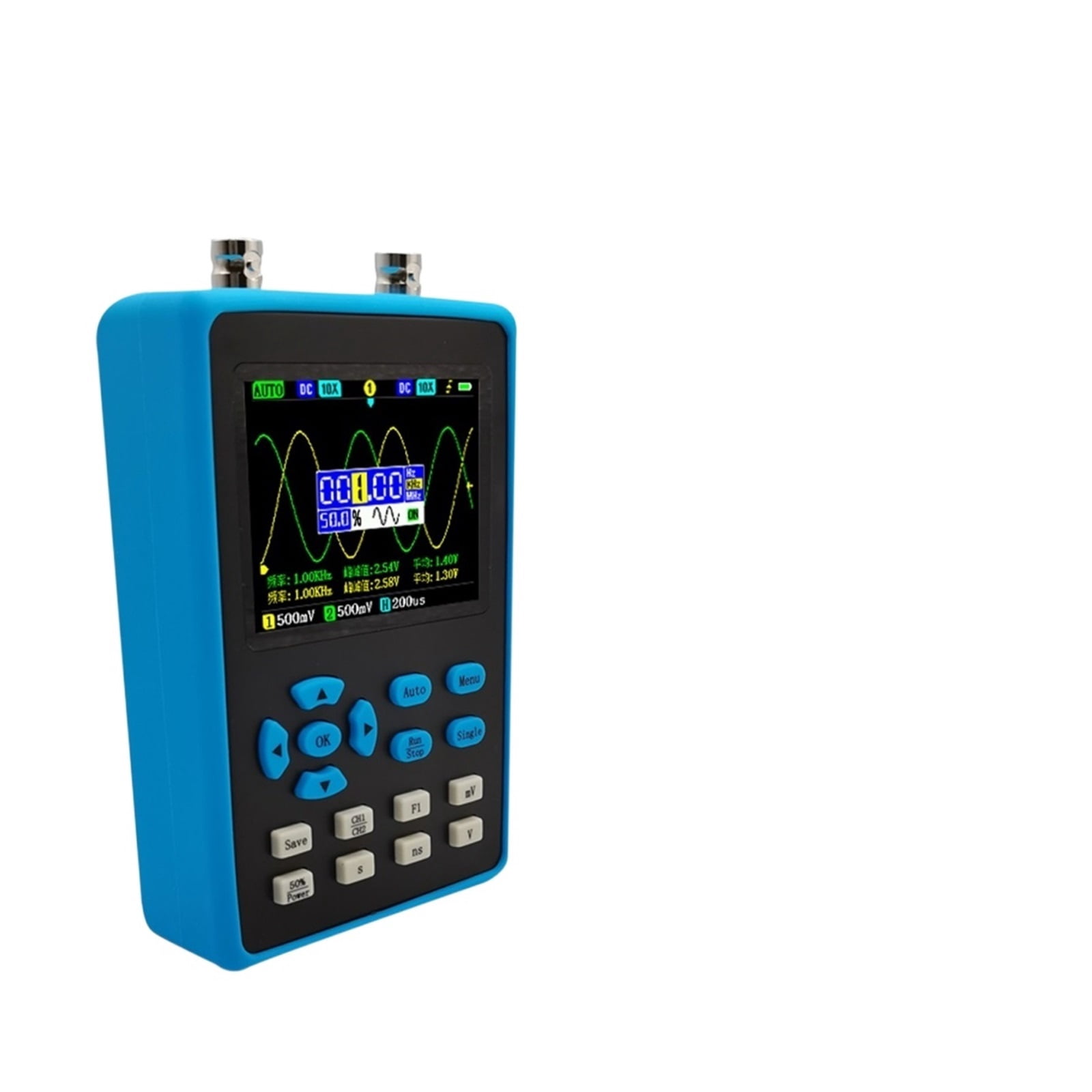

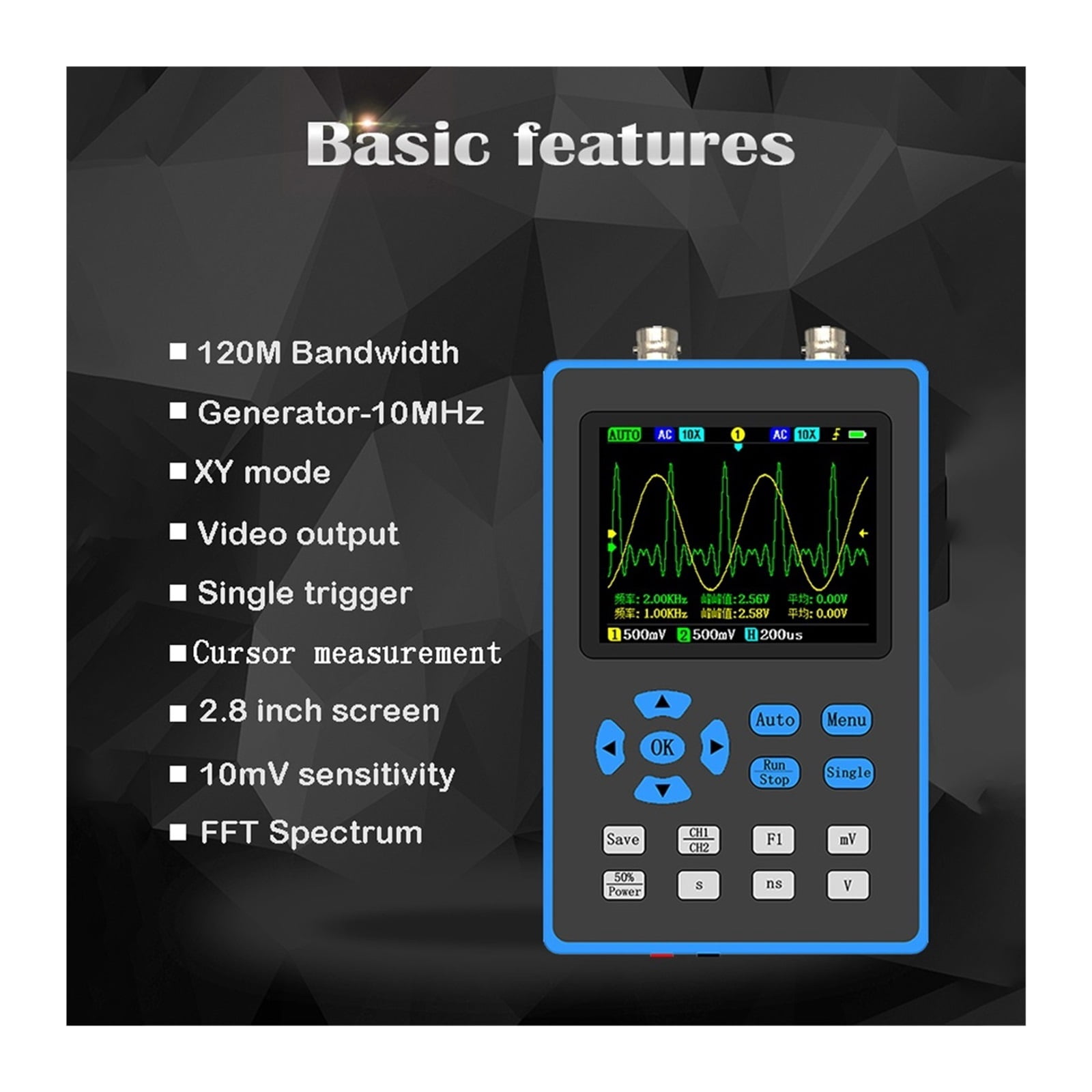

120M Bandwidth Portable Dual Channel Digital Oscilloscope 10mV Minimum Vertical Sensitivity FFT Spectrum Analysis Tool ,Professional Designed

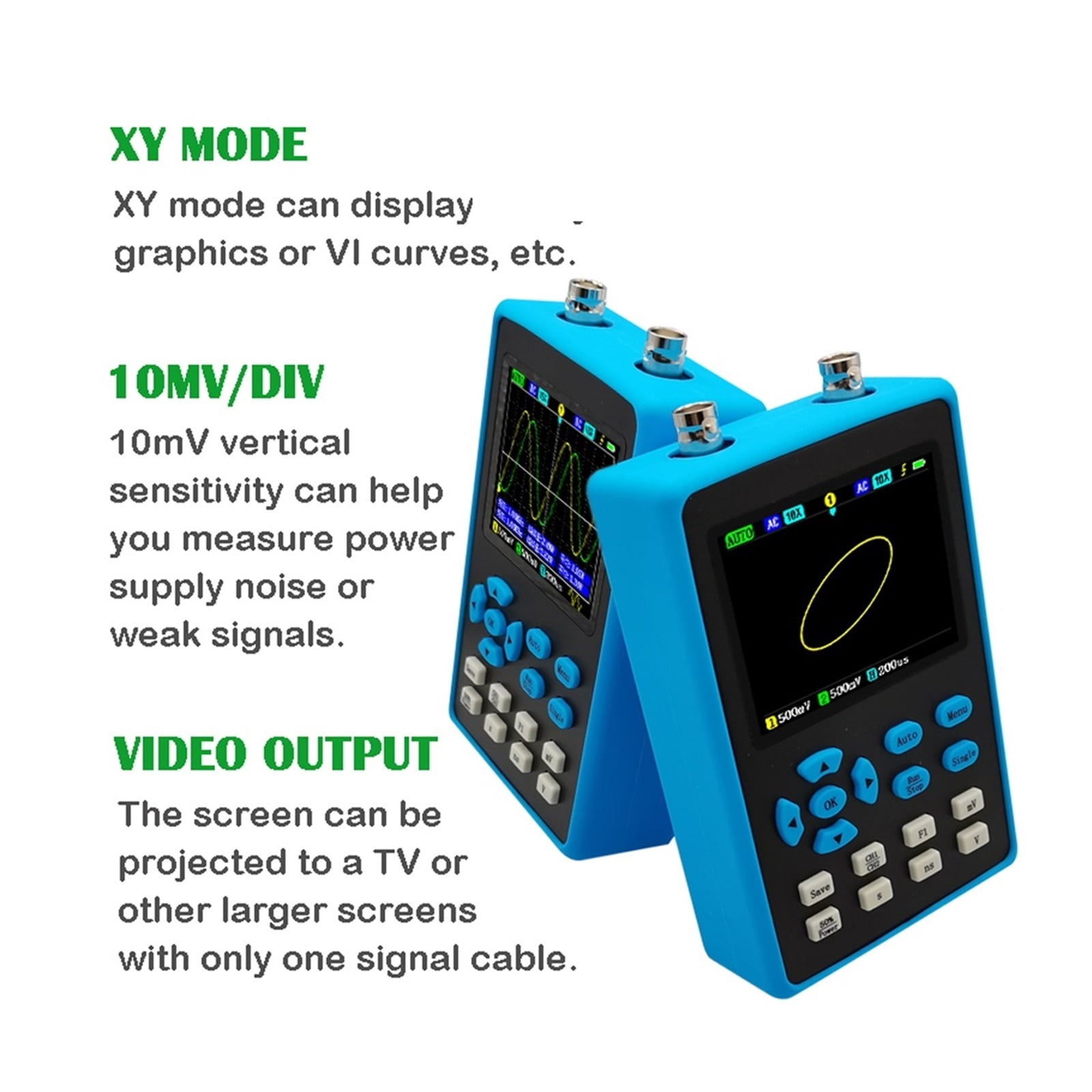

<p>Features:</p><p>The bottom of the oscilloscope can output a variety of waveforms of 2.5V amplitude such as sine waves, square waves, trian-gle waves, half waves, singh waves, among which the frequency adjustment ransof sine wavesis 0~ 10MHz, the frequency ransof other waveforms is 0~2MHz, and the accuracy is up to 0.1Hz. Signal nerators are widely used, such as square wavesfor new probe calibration, driving MOS tube, etc., sine wavescan be used for testing distortion, etc.</p><p>There are 14 measurement options available: Frequency, P-eak to P-eak, Duty cycle, Amplitude, RMS, Avera, Period, +Pulse width, -Pulse width, Max, Min,Top, Base, -Duty cycle.</p><p>There are three types of trigr mode: auto, normal and sin-gle, the automatic trigr can update the waveform in real time without trigring, the normal trigrneed have a waveform trigr to update the waveform and the sin-gle trigr will sample a fr-ame of waveform and stop automatically after the k-ey is pressed.</p><p></p><p>Specifications:</p><p>Material: ABS</p><p>Channels: 2</p><p>Coupling: AC/DC</p><p>Precision of V: ±2%</p><p>Bandwidth 120M</p><p>X Y mode: support</p><p>Sampling rate: 500M</p><p>Screenshot: support</p><p>Rise time: &lt;3ns</p><p>Frequency: ±0.01%</p><p>Stora depth: 128Kbit</p><p>Sin-gle: support</p><p>Impedance: 1M</p><p>FFT: support</p><p>Time base: 5ns~10s</p><p>Wa-ve out amp: 2.5V</p><p>Wavesout freq: 10MHz(sin) 2MHz(other)</p><p>Trigr type: rise/fall</p><p>Display mode: YT/Roll</p><p>Persistence: None/1s /</p><p>Battery: 1 * lithium battery, 4000mAh (included)</p><p></p><p>bandwidth portable dual channel digital oscilloscope, Oscilloscopes, Electronic Measuring Instruments, Measurement &amp; Analysis Instruments</p><p>Related Products: </p><p>oscilloscope, </p><p>portable oscilloscope, </p><p>automotive oscilloscope, </p><p>oscilloscope automotive, </p><p>lab oscilloscopes, </p><p>osciloscopio, </p><p>osciloscopio automotriz, </p><p>handheld oscilloscope, </p><p>digital oscilloscope, </p><p>usb oscilloscope</p>

• Adopts ARM and FPGA chip collocation, provides high-speed signal acquisition and high-speed data processing to give you a smooth use experience and rich functions.
• When the channel two closed, the bandwidth can reach 120M, the bandwidth is 60M when the channel 1 and 2 open at the same time.
• Wide applications: can be used for such as sin-gle-chip debugging, car maintenance, home appliance maintenance,DIY debugging, electronic competition, power supplys debugging, frequency converter and so on.
• Through USB cable connection, the waveform map can be exported to the com-puter (up to 50 at a time) for you re others to use.
• Support scaling waveform after stopping: after stopping, you can drag the waveform from left to right to find the place you are interested in to expand the observation details and analyze the cause of the problem.
